Double stage roll-over valve with residual pressure function
Z-V 0010 0631
Our new lightweight double stage roll-over valve with residual pressure function has a total length of 93 mm, weights 65 g only and responses faster than comparable products. This valve consists of a PVDF and a stainless steel ball and is known for reliable, bubble-tight sealing. Furthermore, a piston ensures a defined residual pressure of the valve. Thus, this valve is a great choice for fuel applications where tight shutoff and an additionally defined residual pressure function are necessary.
The key features are:
- Double stage pressure valve for venting the vehicle tank
Defined residual pressure (opening pressure of residual pressure function at 50±10 mbar)
Overpressure function (in a closed condition, the valve opens between 150-200 mbar) - Function according to FIA Appendix J Article 253 (3.4)
- Ventilation via integrated umbrella membrane
- Prevents accidental spillage of fuel
- Prevents the tank from overflowing via the float ball
- Installation in a vertical position only
- Seal material FKM BF750, FVMQ (E85 applicable)
- Compact size and lightweight
- Other connection types or alternative opening pressure settings available on request
Tank vent valve: Lightweight – compact – E85 applicable
Z-V 0010 0606
FUNCTION
- Valve for venting the vehicle tank
- Prevents the leakage of the fuel in a rollover
- Overpressure function (in the state closed, the valve opens between 150-200 mbar)
- Seal material FKM BF750 (E85 capable)
- Compact size and lightweight
- Fast response time of the valve
- Other connections available on request
- Installation in a vertical position only
FORM
- Weight: 45 g
- Length: 75,7 mm
- Material: EN AW-7075
FIT
- Thread: 9/16-18UNF (-06D)
- Further connections on request
- Application: fuel system

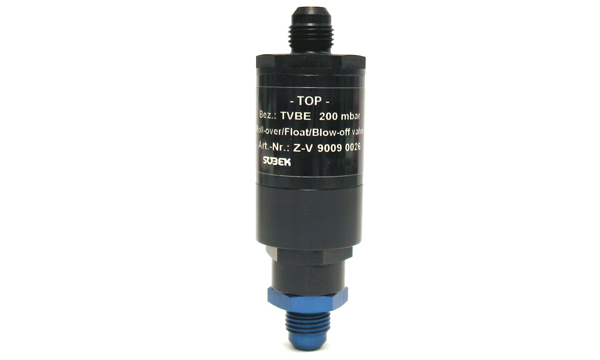

Tank vent valve
Z-V 9009 0026
FUNCTION
- Valve for venting the vehicle tank
- Prevents the leakage of the fuel in a rollover
- Overpressure function (in the state closed, the valve opens between 150-200 mbar)
- Seal material FKM BF750 (E85 capable)
- Fast response time of the valve
- Other connections available on request
- Installation in a vertical position only
FORM
- Weight: 114 g
- Length: 99 mm
- Material: EN AW-7075
FIT
- Thread: 7/8-14 UNF
- Further connections on request
- Application: fuel system
