Filter for oil or fuel – Overview

Type 3

Filter for fuel, oil, water, or hydraulic systems. Connections can be customized.

Filter Diameter
[mm]		 Length
[mm]		 Filter size
[µm]
Filter type 3 23 90 60-320
Filter type 5 36 120 25-200
Filter type 6 36 85 10-150
Filter type 7 36 57 10-150
High-pressure 50 63,5 10-40

Filter type 3

Diameter 23 mm / Length 90 mm
Material: Aluminum

Filter type 3 – Total

Article numberFilter sizeSize
Z-C 2000 001560 µm-4
Z-C 2000 0016150 µm-4
Z-C 2000 0110320 µm-4
Z-C 2000 000560 µm-6
Z-C 2000 0004150 µm-6
Z-C 2000 0017320 µm-6
Z-C 2000 000660 µm-6
Z-C 2000 0003150 µm-6
Z-C 2000 001360 µm-8
Z-C 2000 0007150 µm-8
Z-C 2000 0018320 µm-8
Z-C 2000 0008150 µm-8
Z-C 2000 0001150 µmM16x1.5 female

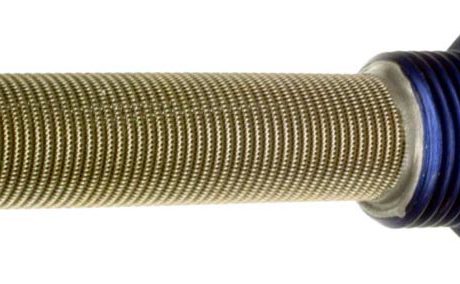

Filter type 3 – Insert

Article numberFilter sizeConnection
Z-C 0002 000560 µm-6
Z-C 0002 0044150 µm-6
Z-C 0002 000160 µm-8
Z-C 0002 0004150 µm-8

Filter type 5

Diameter 36 mm / Length 120 mm
Material: Aluminum

Filter type 5 – Total

Article numberFilter sizeConnection
Z-C 1000 0038  70 µm   -4
Z-C 1000 0011  60 µm   -6
Z-C 1000 0001150 µm   -6
Z-C 1000 0076200 µm   -6
Z-C 1000 0078  25 µm   -8
Z-C 1000 0077  70 µm   -8
Z-C 1000 000715 0µm   -8
Z-C 1000 0029  25 µm -10
Z-C 1000 0014  60 µm -10
Z-C 1000 0079150 µm -10
Z-C 1000 0003150 µm -12
Z-C 1000 0049  70 µm -12

Filter type 5 – Insert

Article numberFilter sizeConnection
Z-C 0002 0170  70 µm   -6
Z-C 0002 0047150 µm   -6
Z-C 0002 0269  25 µm   -8
Z-C 0002 0270  70 µm   -8
Z-C 0002 0150150 µm   -8

Filter type 5 – Cartridge

Article numberFilter size
N-C 0001 0021  10 µm
N-C 0001 0017  25 µm
N-C 0001 0020150 µm

Filter type 5 or 6 – Filter bracket

H-P 1000 0066

Bracket to mount the filter properly.

Measurement: 77 mm x 46 mm, 38 mm diameter

Material: CFK

Filter type 6

Diameter 36 mm / Length 86 mm
Material: Aluminum

Filter type 6 – Total

Article numberFilter sizeConnection
Z-C 1000 1020  10 µm   -6
Z-C 1000 0051  25 µm   -6
Z-C 1000 0046  60 µm   -6
Z-C 1000 0044  70 µm   -6
Z-C 1000 0048150 µm   -6
Z-C 1000 0050  25 µm   -8
Z-C 1000 0055  70 µm   -8
Z-C 1000 0047150 µm   -8

Filter type 6 – Insert

Article numberFilter sizeConnection
Z-C 0002 002010 µm-6
Z-C 0002 002325 µm-6
Z-C 0002 007070 µm-6
Z-C 0002 0045150 µm-6
Z-C 0002 002110 µm-8
Z-C 0002 003325 µm-8
Z-C 0002 007170 µm-8
Z-C 0002 0046150 µm-8

Filter type 6 – Cartridge

Article numberFilter size
N-C 0001 0110  10 µm
N-C 0001 0063  25 µm
N-C 0001 0061  60 µm
N-C 0001 0062150 µm

Filter type 7

Diameter 36 mm / Length 58 mm
Material: Aluminum

Filter type 7 – Total

Article numberFilter sizeConnection
Z-C 0001 0036 5 µm   -6
Z-C 0001 0016 10 µm   -6
Z-C 0001 0015 25 µm   -6
Z-C 0001 0013 60 µm   -6
Z-C 0001 0014150 µm   -6
Z-C 0007 8150150 µm   -8
Z-C 0001 0018150 µm -12

Filter type 7 – Insert

Article numberFilter sizeConnection
Z-C 0002 0026  10 µm   -6
Z-C 0002 0025  25 µm   -6
Z-C 0002 0011 60 µm   -6
Z-C 0002 0017150 µm   -6
Z-C 0002 0016150 µm   -8

Filter type 7 – Cartridge

Article numberFilter size
N-C 0001 001410 µm
N-C 0001 002525 µm
N-C 0001 001660 µm
N-C 0001 0015150 µm

High-pressure filter

Diameter 49,70 mm / Length 63,50 mm
Material: Stainless steel
200 bar, 6 l/min

Filter  – Total

Article number Filter size Connection
Z-C 1000 0021 10 µm    -6
Z-C 1000 0033 10 µm M14x1,5 female

Filter  – Cartridge

Article number Filter size Bypass
N-C 2002 0006 10 µm    2,5bar
N-C 2002 0011 40 µm    2,5bar
N-C 2002 0013 10 µm    0,8-1,2bar
